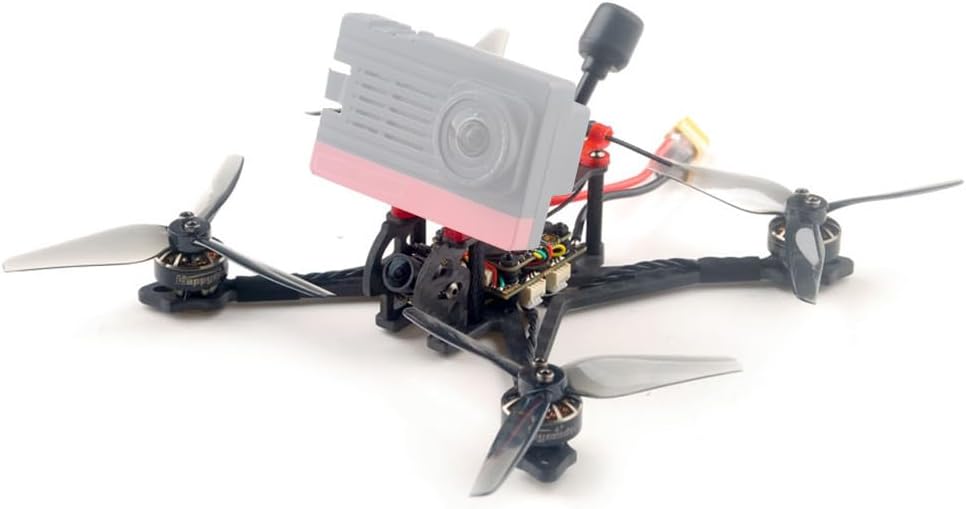

HappyModel Drone for Adults Crux35 HD ELRS X1 CrazyF411 BLHELIS 5A Runcam Link Wasp Nano EX1404 KV3500 4S 3.5inch FPV Digital Drone RC Quadcopter (V2 ELRS SPI)
Product details
| Management number | 208628269 | Release Date | 2026/03/22 | List Price | $36.00 | Model Number | 208628269 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Motor: Mode: EX1404 KV options: KV3500 Configu-ration:9N12P Stator Diamter:14mm Stator Length:4mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.*Len):Φ15mm*15mm Weight(g):9g Propellers: Propeller Diameter: 3.5 inch Pitch : 2 Material : Poly Carbonate Weight : 1.5g Hub Diameter : 10mm Hub Thickness:4.7mm Shaft :1.9/1.5/1.9mm Adaptor Rings : NO Flight controller(ELRS Version): MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Mount pattern: 20x20 M2 Size:32*28*9mm Power supply: 2-4S Lipo battery Built-in 12A Blheli_s ESC each Built-in Betaflight OSD(SPI Control) Built-in SPI ExpressLRS 2.4GHz receiver Built-in 5V 1A BEC Flight controller firmware target: CRAZYBEEF4SX1280 Flight controller(Frsky version): MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 2-4S battery input (DC 8V-17V) Built-in 20A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Frsky D8/D16 SPI receiver Built-in 2.4G Power Amplification Built-in Betaflight OSD(SPI Control) Built-in Current meter Built-in 5V 1.5A BEC Built-in voltage detection Firmware target: MATEKF411RX Onboard 4in1 ESC MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_8.HEX Default protocol: DSHOT300
- ExpressLRS is the most popular RC link system by now , it could performance very well with Crux35 HD. Integrated ExpressLRS SPI receiver or Frsky SPI D8/D16 receiver.
- The HD version is equipped with runcam Link Wasp Nano image transmission system. Ultra-lightweight 3.5-inch BNF FPV Freestyle Drone.
- High efficiency EX1404 power system. Can be equipped with Naked Gopro or SMO4K. Support 3-4S battery 4S 750mah battery is recommended, maximum support 4S 1100mah.
- Product name: Crux35 HD. Wheelbase: 150mm. Weight: Crux35 HD 108gram. Size: 130mmx130mmx45mm(without propellers).Receiver option: V2 2.4GHz. SPI Frsky D8/D16 (S-FHSS compatible). Camera option: runcam Link Wasp Nano. Flying time: 9min~15min 4s 750mah battery.
- Crux35 Frame*1. v2 flight controller or CrazyF411 flight controller*1. runcam Link Wasp Nano *1. Happymodel EX1404 KV3500 brushless motor*4. HQProp T3.5X2X3Grey (4cw+4ccw)*1. Screw Driver*1. Buckle Velcro for battery*1.
| Brand | MINGCHUAN |
|---|---|
| Color | V2 ELRS SPI |
| Model Name | crux35 |
| Control Type | Remote Control |
| Manufacturer | HappyModel |
| Special Feature | Advanced imaging sensors and image transmission system |
| Battery Capacity | 750 Milliamp Hours |
| Special Features | Advanced imaging sensors and image transmission system |
| Included Components | Battery, Battery Strap, Camera, Carrying Case, Flight Controller, Motor, Propeller, Screwdriver |
| Video Capture Format | MP4 |
| Age Range Description | Adult |
| Are Batteries Included | Yes |
| Connectivity Technology | ExpressLRS, FrSky |
| Remote Control Included | No |
| Battery Cell Composition | Lithium Polymer |
| Manufacturer Part Number | 1MC44922-D3 |
| Video Capture Resolution | 1080p |
| Optical Sensor Technology | CMOS |
| Rechargeable Battery Included | Yes |
| Wireless Communication Technology | Radio Frequency |
